Honda Motors BF150

OutboardTransom Ht.Remote ModelTiller IncludediST- Electronic Shift & ThrottleElectric StartCharging SystemProp IncludedPower ThrustPower Tilt & TrimGas AssistColor
BF15020"XX40AXSilver
BF15020"XX40AXWhite
BF15025"XX40AXSilver
BF15025"XX40AXWhite
Honda four-stroke technology

Reliable, efficient 4-stroke design

World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.

Honda Accord engine technology

Legendary Quality Based on Honda Accord and CR-V

By sharing components with Honda automobiles, the BF135 and BF150 gain years of proven engineering and reliability.

Honda VTEC technology

VTEC® - Smooth acceleration and power

VTEC provides a broader, flatter torque curve and smooth power delivery throughout the engine’s operating range.

Honda dual-stage induction

Dual Stage Induction - Breathing easier improves performance

Honda’s variable intake system optimizes airflow to match engine speed for improved combustion efficiency, torque and fuel economy.

Honda Lean Burn Control

Lean Burn Control® - Superior fuel efficiency

Lean Burn Control® allows combustion to operate on a leaner air/fuel mixture.

Honda programmed fuel injection

Multi-port Programmed Fuel Injection - Powerful performance

Programmed Fuel Injection delivers precise fuel and air to each cylinder for easy starts and instant throttle response.

Honda dual overhead cam

Dual Overhead CAM - High horsepower, low maintenance

A compact 24-valve DOHC design creates more valve lift for increased horsepower.

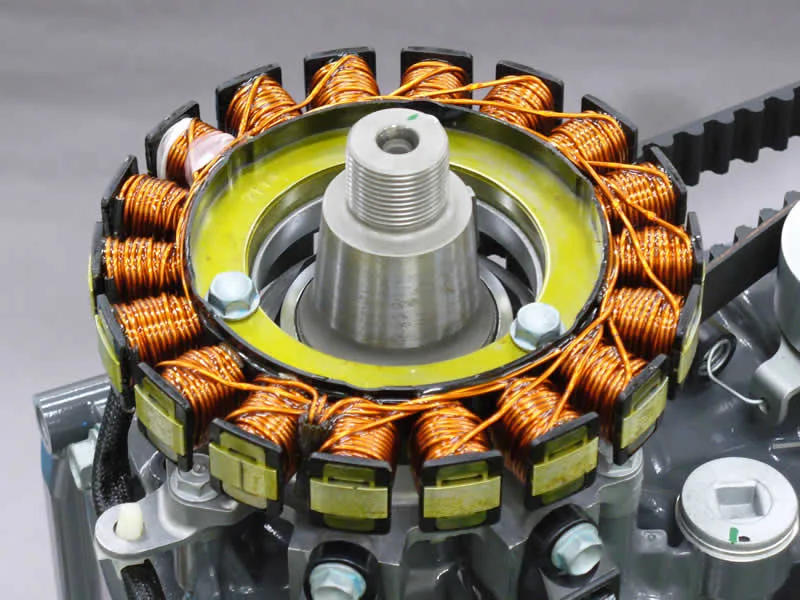

Honda battery charging system

Superior Battery Charging - More usable power

Honda's 51 amp belt-driven alternator delivers 30 amps at 1,000 RPM and more than 40 amps above 2,000 RPM.

Honda engine alert system

Engine Alert System - Keeps you informed

The system monitors overheating, water in fuel, low oil pressure, battery condition, over-revving and critical engine functions.

Honda variable-speed trolling

Fisherman Friendly Variable Speed Trolling

Optional push-button control adjusts trolling speed in 50 RPM increments from 650 RPM to 1000 RPM.

Honda engine command module

Engine Command Module - Optimum performance

The module receives constant input from 18 sensors to deliver instant starts, smooth operation and strong fuel-efficient performance.

Honda air fuel and knock sensors

LAF & Knock Sensors - Optimum Efficiency

Linear Air Fuel and knock sensors determine correct fuel flow and ignition curve.

Honda counter-rotation system

Counter Rotation Available

Counter-rotating models improve efficiency and hull maneuverability while decreasing driver fatigue.

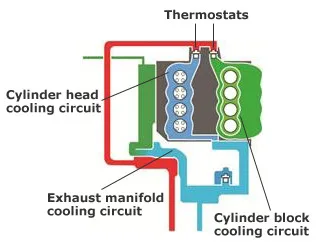

Honda three-way cooling system

3-Way Cooling System - Cool running durability

Three separate cooling systems keep the cylinder heads running cooler.

Honda single-latch cowl

Convenient Single Latch Cowl

A front-mounted latch and four securing points ensure a watertight seal.

Sealed Starter - Protection for long life

The starter motor is inverted into a sealed chamber.

Honda saltwater protection

Stainless Steel components - corrosion resistance

Stainless steel steering arm, tilt tube and shafts provide long-term corrosion resistance.

Honda shaft options

Available in 20 and 25 inch shaft lengths

NMEA 2000 connectivity

Meets NMEA 2000 standards - on-board connectivity

NMEA 2000 protocols allow engine data to be displayed on compatible dashboard electronics, sonar and GPS systems.

Honda engine alert system

Engine Alert System - Keeps you informed

Visual, audio and RPM reduction circuits alert the operator to overheating, low oil pressure and over-revving to help prevent engine damage.

Honda corrosion protection

4-Front Corrosion Protection System - Fights the elements

A multi-layered paint process, sacrificial anodes, stainless steel technology and waterproof connectors enhance corrosion protection.

Honda True 5 warranty

True 5 Warranty

Honda's transferable, non-declining warranty is the same on the last day as it is on the first.

Accessible Honda outboard maintenance points

Easy Maintenance

Accessible oil filters, oil fillers and screw-type valve adjusters simplify routine maintenance and help reduce service costs.

California ultra-low emissions certification

Ultra Low 3 Star CARB Emissions

Honda Marine engines exceed the highest CARB 3-Star rating to meet California Air Resources Board standards.

Engine

Type
4-Stroke DOHC 4 Cylinder/16 Valves
Displacement
2,354 cc (144 cubic inches)
Bore & Stroke
87 mm x 99 mm (3.4 x 3.9 inches)
Full Throttle RPM Range
5,000-6,000 RPM
Rated Power
150 HP @ 5,500 RPM
Cooling System
Water Cooled
Fuel Delivery
Programmed Fuel Injection
Ignition System
MicroComputer Programmed
Starting System
Electric
Exhaust
Through Hub
Lubrication
Wet Sump
Trim Range
-4° to +16°
Tilt Range
72°

Drive

Gear Ratio
2.14:1
Gear Shift
F-N-R

Equipment

Alternator
51 Amp
Battery Charging Power
30 Amp at 1,000 RPM, 40 Amp above 2,000 RPM
Propeller
Optional
Power Tilt
NA
Power Trim & Tilt
Standard
Gas Assisted Tilt
NA
Oil Pressure Alert
Standard
Temperature Alert
Standard
Rev-Limiter
Standard
Speedometer Pickup
Standard

Dimensions

Overall Width
580 mm/22.8 inches
L Type Transom Height
508 mm/20 inches
X Type Transom Height
635 mm/25 inches
L-Type Dry Weight
217 kg/478 lbs.
X-Type Dry Weight
220 kg/485 lbs.
